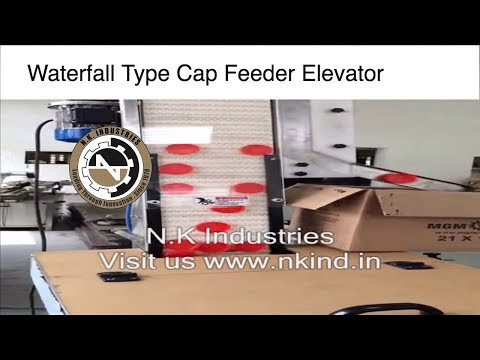

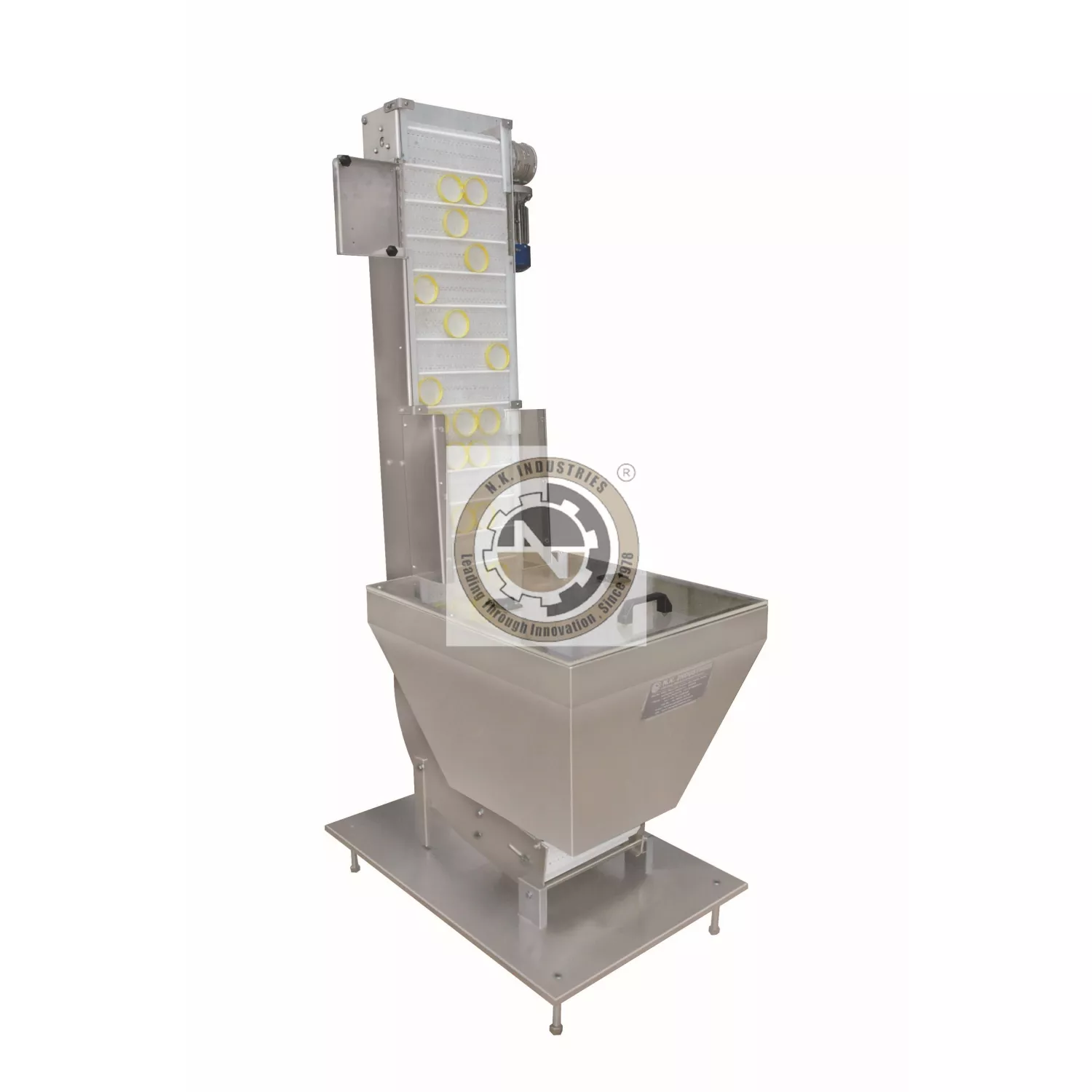

Waterfall Type Cap Feeder Elevator With Storage Silo

Product Description

Waterfall Type Cap Feeder Elevator is type of machine which is available with storage silo generally used in conjunction with mother machine like capping machine. Waterfall type cap feeder elevator can store relatively larger amount of bottle closures like Screw caps, ROPP Caps etc in storage silo over traditional vibrator hopper / orientator hopper used in capping machine.

The fundamental purpose of the Waterfall cap feeder elevator is to orient a bottle closure like Screw cap, ROPP Caps & discharge it to a transfer system which is generally a Shute of the capping machine. Closures are trickled through a hopper onto a horizontal section of belt. The cap in wrong direction will fall down due to the centre of gravity difference and correct oriented closures continue to travel up the elevator to where they are pushed with the help of pneumatics system & stripped sideways off of belt into a discharge area. From here caps are transferred by a chute to where they are applied to a container.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries
  • cGMP Model
  • Speed Of Unit Can Be Varied.
  • Auto On / Off Sensor For Elevator.
  • Floor Level Silo For Plug Insert Loading.
  • Can Storage Capacity 3000 To 5000 Nos At A Given Time Depending Upon The Diameter Of Cap.
  • Output Of Cap Around 100 To 150 Caps Per Minute.
  • Cap Output Orientation With Delivery Chute.
  • All Electrical Are Of CE Certified.




100 To 150 Caps / Minute

Storage Silo Capacity

3000 To 5000 Nos Depending Upon The Cap Diameter

Electrical Connection

230 V Singh Phase 50 HZ

Powder Consumption

0.5 HP

Air Requirement

2 KG/Cm2

  • Shute Of For Downstream Machine.
  • Pharmaceuticals
  • Distilleries & Breweries
  • Cosmetics & Toiletries
  • Lube & Edible Oil
  • Pesticides
  • Food & Ancillaries


  • Right Of Technical Enhancement & Modifications Reserved.
  • All Illustrations & Dimensions Are Described For Information Only.
