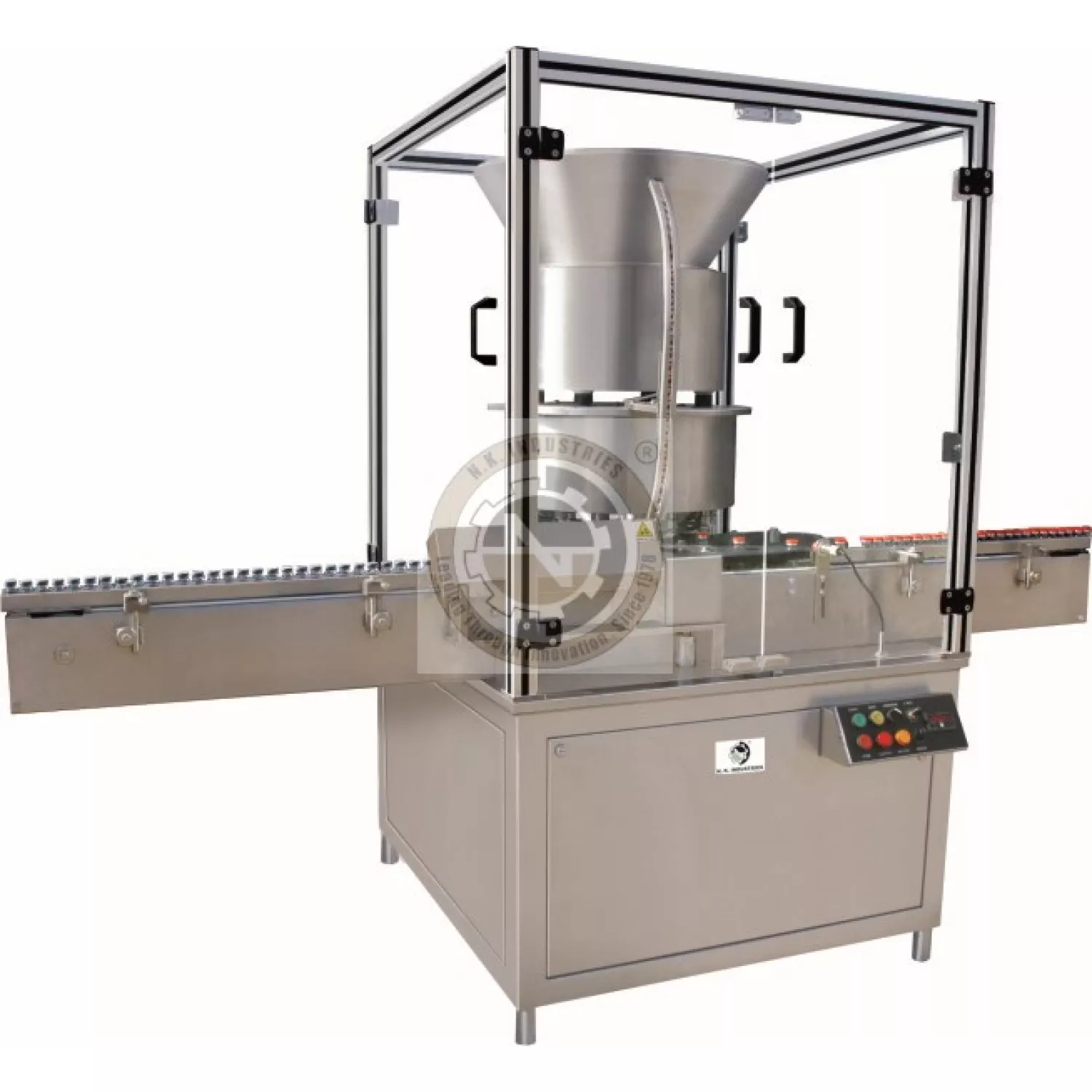

Vial Cap Sealing Machine

Product Description

N.K Industries is leading manufacturer, supplier & exporter of Premium Quality top notch Vial Cap Sealing machine which is available in 8 head configurations. Vial cap sealing machine is suitable for 13mm / 20mm / 28mm /32mm tear off & Flip-off Seal as well as 2 ml vial to 100 ml pharmaceutical glass bottle both moulded and tubular vial. It can give output of 300 Vial per minute depending upon the vial diameter.

The premium state of the art 8 head Vial Cap Sealing Machine is integrated with 15" industrial Grade touch panel PC, SCADA Interface, camera-based inspection system for rubber stopper as well as flip off cap & inbuilt Rejection system. It is fully compliant to 21CFR-PART11.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries
  • CGMP Model & 21 CFR-PART 11 Compliant
  • Parts Coming In Contact With The Vial, Aluminum Cap Are Made Out Of AISI 304.
  • Force Measurement System
  • Sealing Pressure Can Be Varied According To Diverse Sizes Of Flip Off Caps & Tear Off Caps.
  • An Extraordinary Safety Clutch Device Is Incorporated On Star Wheel System For Stoppage Of Machine In The Event Via Gets Overturned Or In Any Jamming.
  • Lowest Particle Generation. As An Option, Specially Designed Viton Sealing Roller & Pneumatic Sealing Head Available.
  • Industrial PC For Operation And SCADA & Isolated Standalone Control Panel In AISI 304

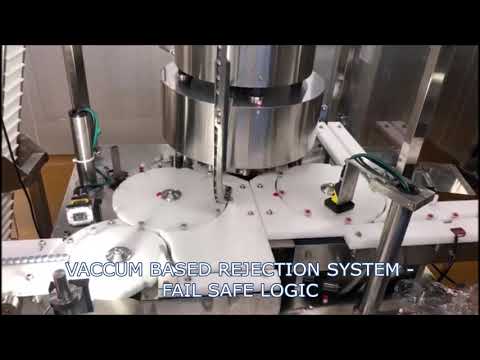

  • Camera Based Rejection System
  • Side Vibrator With Chute For Continuous Flip Off Cap Feedings.
  • Vibrator Bowl And Shute Can Be Easily Dismantled For Sterilization Purpose.
  • Motorized Turret Height Adjustment.
  • Oil Less Rotary Vane Vacuum Pump For Rejection System.
  • Toughened Glass Safety Cabinet For The Machine.
  • Speciall Labview SCADA Software.



Model

NKCS-350

Machine Type

8 Head Vial Cap Sealing Machine

Direction

Left To Right

Vial Diameter (mm)

Up To 45 Mm

Vial Height (mm)

75mm* Maximum

Flip Off Seal / Tear Of Seal Sizes

13mm, 20mm, 28mm ,32mm

Auto Cap-adding Ratio

≥99.7%

Qualified Capping Ratio

≥99.5%

Bottle Breakage Ratio

≤0.5%

Production Rate

Up To 300 Vial Per Minute

Electrical Supply

1.5 HP For Main Drive

No Of Sealing Head

Eight Head

Power Requirement

440 V ,3 Phase (4 Wire System ) 50 HZ

Height Of Conveyor

Adjustable From 800 To 850 Mm

Dimension

(L X W X H) Mm

1830 X 768 X 1600

  • Machine Mounted Laminar Air Flow
  • Pharmaceuticals
  • Injectable
