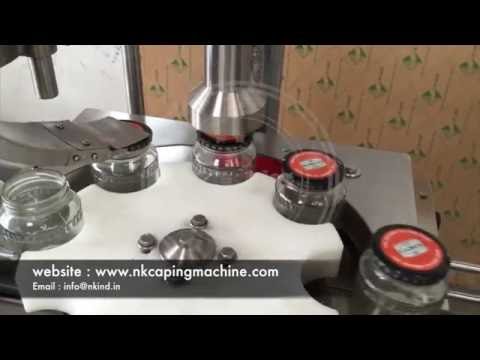

Automatic Single Head Lug Capping Machine

Product Description

N.K Industries: Premier Manufacturer of Automatic Single Head Lug Capping Machines

N.K Industries, based in Ahmedabad, Gujarat, India, is a leading manufacturer, supplier, and exporter of advanced capping technology. Our state-of-the-art Automatic Single Head Lug Capping Machine Model NKSC-60L is specifically designed for the food industry, including vinegar and pickle manufacturing. This machine is engineered for precision and efficiency, featuring a special waterfall-type cap feeder elevator for seamless lug cap feeding. Capable of delivering a modest output of 30 to 40 bottles per minute, it is an ideal choice for medium-scale operations.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries
  • Compact And CGMP Compliant: Designed As A Compact Unit Adhering To Current Good Manufacturing Practice (CGMP) Standards.
  • Durable Construction: Parts In Contact With Bottles And Lug Caps Are Made From AISI 304 Stainless Steel.
  • Efficient Synchronization: A Single Motor Synchronizes The Conveyor, Star Wheels, And Platform Turret.
  • Advanced Safety Features: Includes Safety Clutches And Background Suppression Sensors For Enhanced Operational Safety.
  • No Bottle – No Cap System: Prevents Caps From Being Applied If No Bottle Is Present.
  • Automatic Elevator On/Off System: Manages The Cap Feeder Elevator Automatically To Improve Efficiency.
  • Magnetic Hysteresis Clutch-Based Capping Head: Provides Precise Torque Adjustment To Ensure Uniform Cap Application And Prevent Cap Thread Damage.
  • Waterfall-Type Cap Feeder Elevator: Efficiently Feeds Caps To The Capping Head For Continuous Operation.
  • Quick Format Changeover: Easily Adapts To Different Container Sizes With Minimal Adjustment Time.
  • Anti-Jamming Design: Features A Uniquely Designed Positioning System To Prevent Cap Jams.
  • CE Certified Components: All Electrical And External Items Meet CE Certification Standards For Quality Assurance.

Direction

Left To Right.

Type Of Capping

Lug Capping

Cap Pick On Container

Shut Pick Up

Electrical Supply

1.5 HP For Main Drive

Output

30 To 40 Bottle Per Minute Depending Upon The Bottle Diameter

No Of Sealing Head

Single

Power Requirement

230 Volts, 1 Phase 50 Hz.

Height Of Conveyor

Adjustable From 800 To 850 MM

Dimensions

1530 MM (L) X 850 MM (W) X 1900 MM (H)

Net Weight

550 KGS (Approx.)

Gross Weight

740 KGS (Approx.)

Container Diameter

22 Mm To 100 Mm

Height

15 Mm To 100 Mm

Lug Caps

Diameter: 22 To 84 Mm

  • PLC - HMI Interface: Provides Advanced Control And Monitoring With A User-friendly Interface.
  • Automatic Head Up And Down System: Facilitates Automatic Adjustment Of The Head Position.
  • Safety Cabinet Options: Available With Toughened Glass Or Acrylic Safety Cabinets For Enhanced Protection.

The Automatic Single Head Lug Capping Machine Model NKSC-60L Is Ideal For Use In:

  • Food Industries
  • Pickle Manufacturing Units
  • Vinegar Production

Frequently Asked Questions


1. What Is The Output Speed Of The Automatic Single Head Lug Capping Machine?

  • The Machine Can Handle 30 To 40 Bottles Per Minute, Depending On The Bottle Diameter.

2. What Types Of Containers Can The Machine Handle?

  • The Machine Can Work With Round, Square, And Triangular Containers.

3. How Does The No Bottle – No Cap System Work?

  • This System Ensures That Caps Are Only Applied When A Bottle Is Present, Preventing Wasted Caps And Improving Efficiency.

4. What Is The Advantage Of The Magnetic Hysteresis Clutch-based Capping Head?

  • It Provides Precise Torque Adjustment, Ensuring Uniform Cap Application And Preventing Damage To The Cap Threads.

5. Can The Machine Be Used For Different Cap Sizes?

  • Yes & The Sealing Pressure Can Be Adjusted To Accommodate Various Cap Sizes And Gauges.

6. What Add-on Features Are Available?

  • The Machine Can Be Equipped With A PLC - HMI Interface, Automatic Head Up And Down System, And Optional Safety Cabinets Made Of Toughened Glass Or Acrylic.

7. What Are The Power Requirements For The Machine?

  • The Machine Requires 230 Volts, 1 Phase, 50 Hz Power Supply.

Why Choose N.K Industries For Your Automatic Single Head Lug Capping Machine?

N.K Industries Offers Advanced, Reliable, And Efficient Capping Solutions Tailored To Meet The Needs Of The Food Industry. Our Automatic Single Head Lug Capping Machine Model NKSC-60L Combines High Performance With Cutting-edge Features To Ensure Optimal Capping Results. Trust N.K Industries To Provide Superior Machinery That Enhances Your Production Process.



Contact Us Today To Find Out How The NKSC-60L Can Elevate Your Capping Operations!


Notes:

  • Right Of Technical Enhancement & Modifications Reserved
  • All Illustrations & Dimensions Are Described For Information Only
