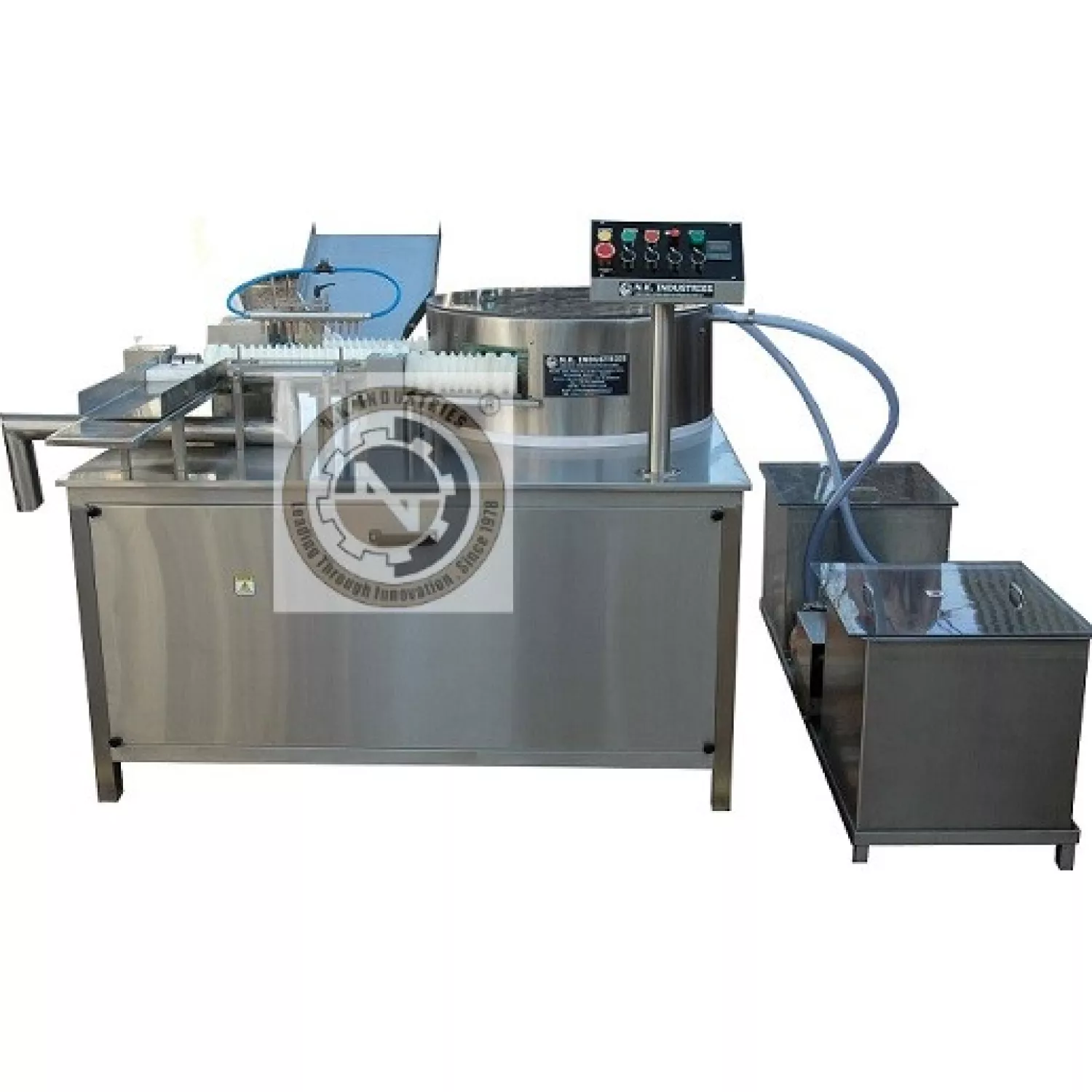

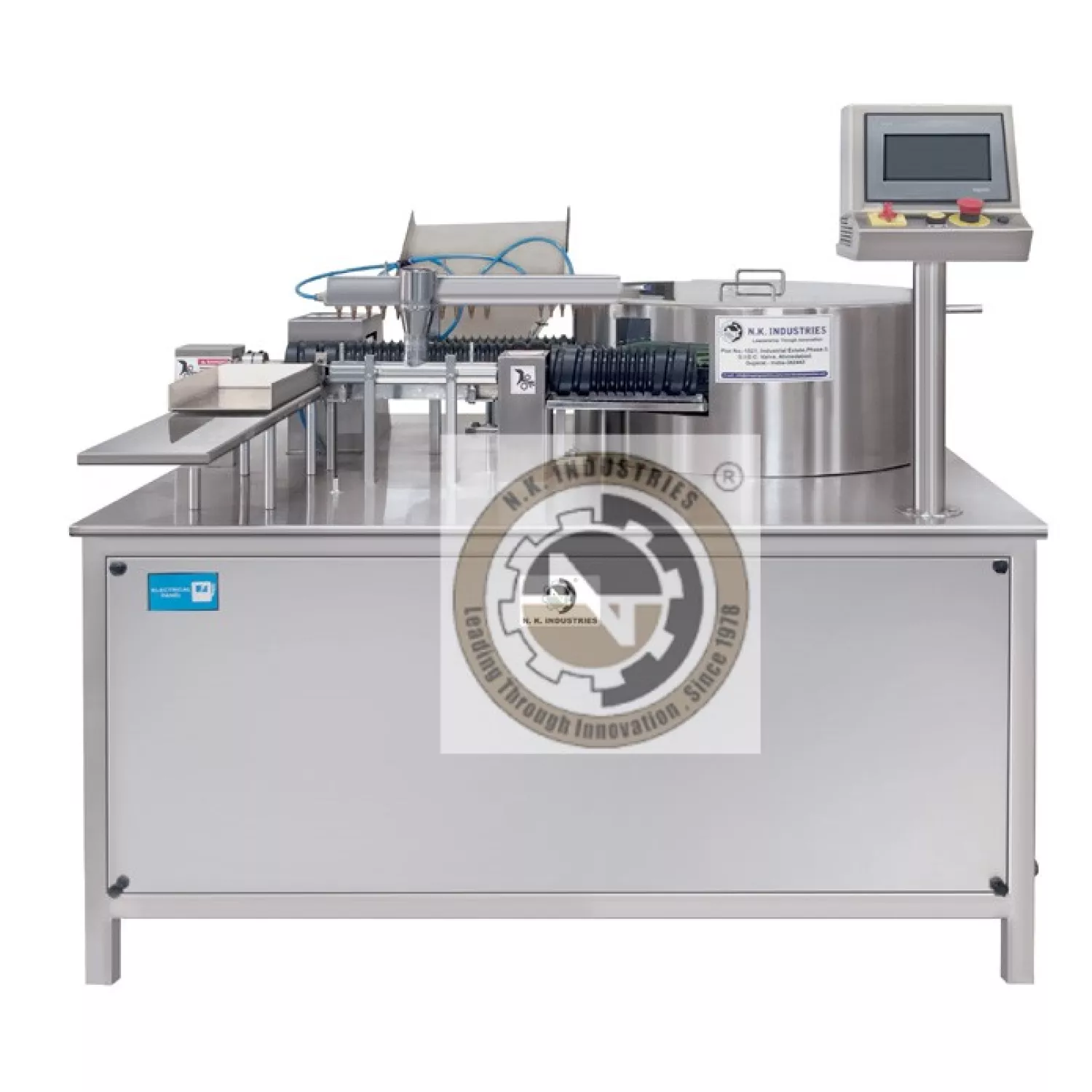

Rotary External Ampoule Washing Machine

Product Description

The Automatic High Speed Rotary External Ampoule Washing Machine Model NKEAW-250 is used to wash external surface of cylindrical container like Ampoule after the filling and sealing operation done. It is equipped with 4 stage of washing which include washing medium like Detergent Water, Tap Water, Air wash & heating & washing sequence can be changed as per customer requirement. The speed of the machine is up to 250 Ampoule per minute.

The Automatic High Speed Rotary External Ampoule Washing Machine has a uniquie temperature control system for water & compressed air. The control system has capability to display the set parameters and actual parameters. Machine has inbuilt auto draining facility for water line.The Automatic High Speed Rotary External Ampoule Washing Machine is applicable in pharmaceutical & injectable segment.

  • Salient Feature
  • Technical Specification
  • Add On Feature
  • Applicable Industries
  • Machine Frame Is Made Of AISI 304 Pipe Duly Welded & Grinded Surfaces & Fully Covered With The AISI 304 Sheet.
  • CGMP Model.
  • Loading Is Done With Help Of Tray Where Ampoule Stored In Bulk.
  • 4 Stage External Washing Sequence.



Particular

Specification

Machine Overall Dimension

(L X W X H) Mm

1400 X 1070 X 730
1400 X 1070 X 1230 (with Operating Panel)

Machine Net Weight (KG)

500

Machine Gross Weight (KG)

800

Tanks

2 Nos Of SS-316 Tanks With 50 Liters Capacity

Output

1 Ml To 5 Ml Ampoule à 250 CPM

Suitability

1 Ml To 5 Ml Ampoule With Change Part

Loading Of Container To Machine

Tray

Unloading Of Container

Tray

No Of Centrifugal Pump With 3 Phase Induction Motor

2 Nos

Blower

1 Nos

Heater block

3 No Of Heaters And Each Rating 1 KW.



  • PLC – HMI Interface.
  • Detergent Wash If More Dirt



  • Pharmaceuticals
  • Injectable

Notes:

  • Right Of Technical Enhancement & Modifications Reserved.
  • All Illustrations & Dimensions Are Described For Information Only
