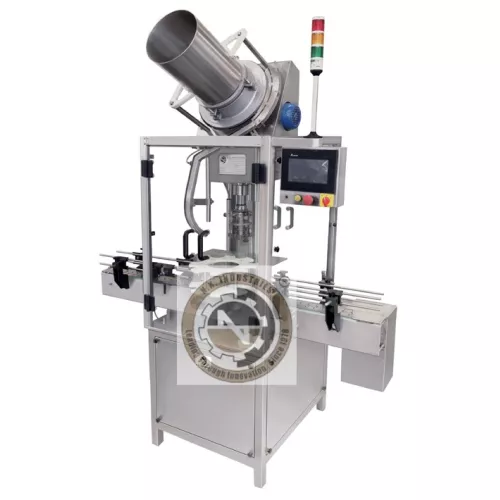

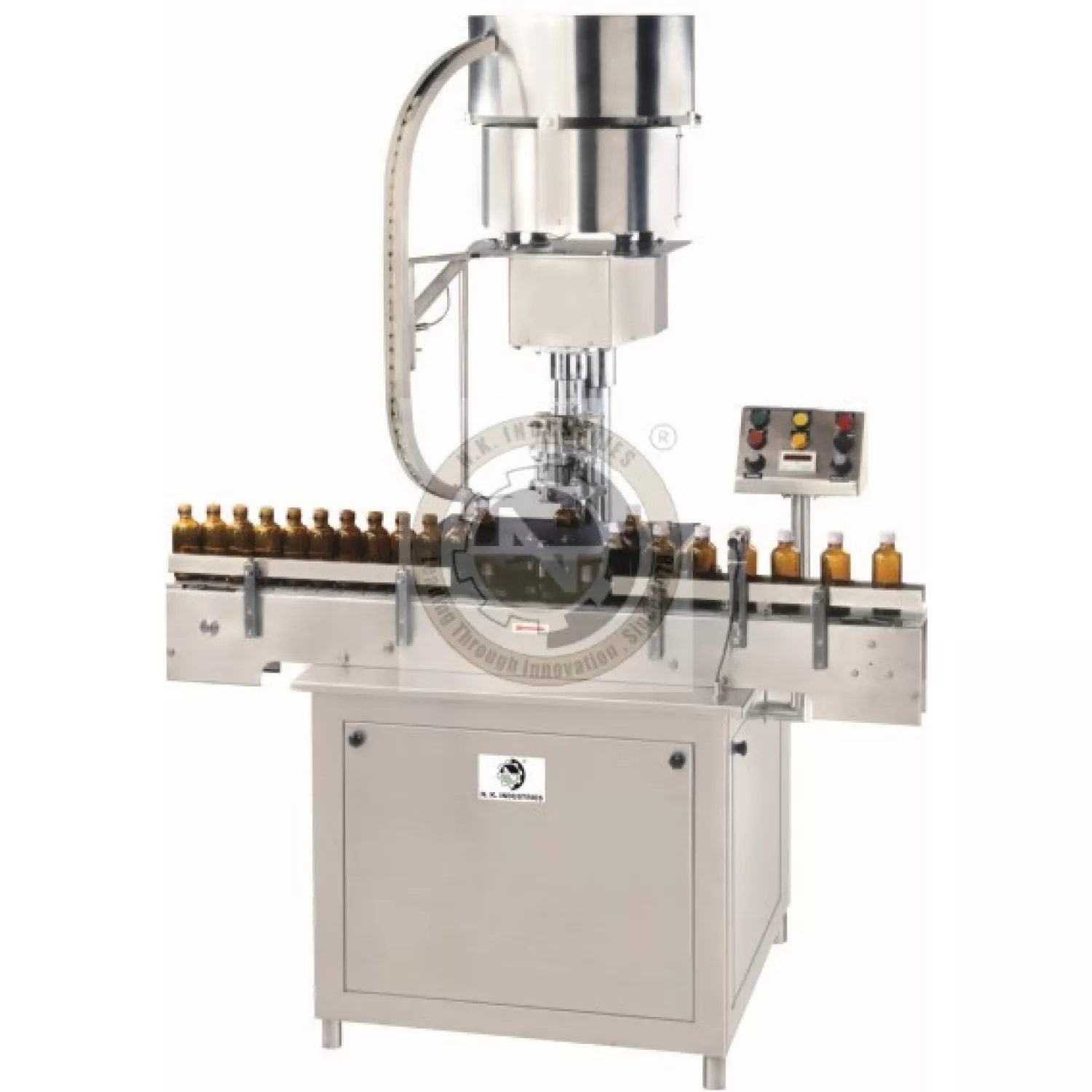

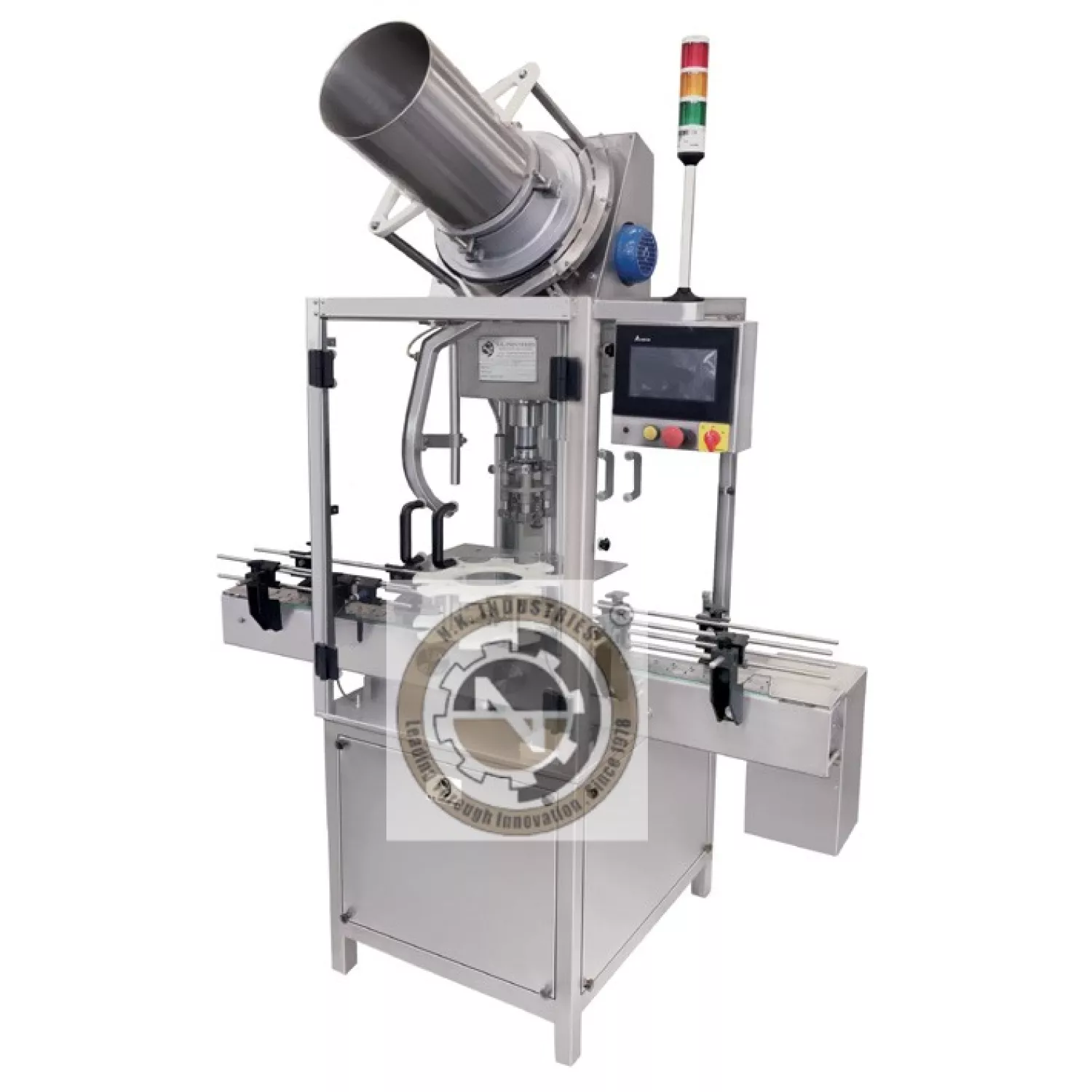

Automatic Single Head Ropp Capping Machine



The Automatic Single Head ROPP Capping machine Model NKCS-60R is exclusively designed by N.K Industries adopts single motor which is concise & synchronizes conveyor, star wheels, platform turret. Automatic Single Head ROPP Capping machine Model NKCS- 60R can deliver 50 Bottle per minute output depending upon container Diameter.

Automatic Single Head ROPP Capping machine can work with wide shaped of container like Round, Square with minimum change part. Machine is being made using AISI 304 and aluminum alloy for easy maintenance and longevity. From Safety point of view, machine is equipped with Safety Clutch, No bottle – No cap system and additionally machine can be made available with Acrylic safety cabinet / Toughened glass safety cabinet.

  • Compact & Adaptable Unit As Per GMP Standard.
  • Parts Coming In Contact With Bottle / ROPP Cap Are Made Out Of AISI 304.
  • Single Motor Synchronizes Conveyor, Star Wheels And Platform Turret.
  • Low Power Consumption.
  • A Special Safety Clutch Device Is Being Integrated On Star Wheel System For Stoppage Of Machine In The Event, Vial Is Over Turned.
  • A Special Background Suppression Sensor Stops Machine Automatically In The Event, There Is No Aluminum Cap In Delivery Chute.
  • No Bottle – No Cap System.
  • Sealing Pressure Can Be Control / Changed To Suit Diverse Sizes Of ROPP Caps.
  • Various Cap Feeding System Available Like Vibrator Feeder System, Mechanical Orientator System Or Water Fall Type Elevator.
  • Fast Format Changeover From One Size Of Container To Other Size.
  • Distinctively Designed Position System Prevents From Cap Being Jammed.
  • Precise Counting Arrangement Helps To Manage Production Process.
  • Outfitted With Emergency Button For Safety Concern.
  • All Electrical & Brought Out Items Are Of CE Certified.
  • Online Vacuum Cleaning System To Remove The Dust Online From Cap
  • PLC - HMI Interface
  • Cap Feeder Elevator
  • Automatic Head Up And Down System
  • Toughened Glass Or Acrylic Safety Cabinet For Machine.





Direction

Left To Right.

Type Of Capping

ROPP Type Capping

Production Rate

Up To 50 Bottles / Min Depending Upon Container Diameter And Height

Electrical Supply

1.25 HP

No Of ROPP Capping Head

Single

Power Requirement

440 Volts, 3 Phase (4 Wire System) 50 Hz.

Height Of Conveyor

Adjustable From 800 To 850 MM

Dimensions

1200 MM (L) X 750 MM (W) X 1900 MM (H)

Net Weight

550 KGS (Approx.)

Gross Weight

740 KGS (Approx.)

Bottle Diameter

22 MM To 65 MM MAX.

Height

55 MM To 110 MM MAXIMUM.

ROPP Caps

22, 25 & 28 MM DIAMETER.(with Help Of Change Parts)



  • Pharmaceutical,
  • Beverages,
  • Wine
  • Distilleries



Notes:

  • Right Of Technical Enhancement & Modifications Reserved.
  • All Illustrations & Dimensions Are Described For Information Only
