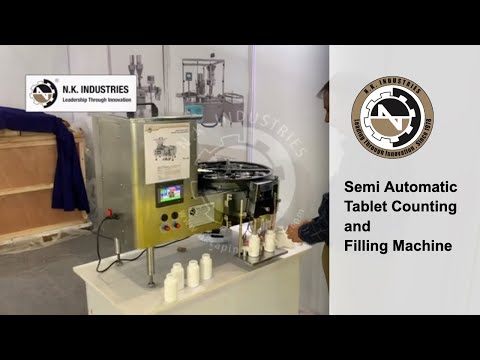

Semi Automatic Tablet Counting Filling Machine

Product Description

Semi-Automatic Tablet Counting and Filling Machine

N.K Industries based in Ahmedabad, India is leading manufacturer, supplier and exporter of top-notch quality Semi-Automatic Tablet counting & filling machine which are available at a very economical cost. This machine can be used to fill the tablet, capsule and pill.

The outstanding feature of the machine is special wide beam fiber optic sensor for counting as well as PLC- HMI control.

  • Salient Feature
  • Technical Specification
  • Applicable Industries

Semi-Automatic Tablet Counting And Filling Machine Is Equipped With Following Outstanding Features:

  • CGMP Model
  • Machine Equipped With State-of-the-Art Integrated PLC- HMI.
  • Special Fiber Optic Sensor
  • Glass Disc Type Turn Table.
  • Variable Speed Through The Use Of Variable Frequency Drive
  • Smart Monoblock Geared Motor
  • Machine Body Structure AISI 304.

Model

NKTC-500S

Tablet Sizes

Tablets Dia. 5 To 12mm, Irregular Shape,

Pill Sizes

Pills Dia. 3 To 13mm

Capsule Sizes

Capsules 0 To 5

Production Speed

·   400 To 500 Tablets Per Minute. (Depending Upon The Tablet Size & Shape)

·   For Capsule 200 To 300 Capsule / Minute (Depend On Capsule Size & Shape)

Dimension ( L X W X H ) MM

1000 X 650 X 1100

Air Required

6 Bar

Counting Sensor

Though Beam Type Fiber Optic (Germany)

Electrical Connection

230 Volts,50 Hz, 1 Phase

Semi Automatic Tablet Counting & Filling Machine Is Applicable In Following Industries

  • Pharmaceuticals.
  • Nutraceuticals
