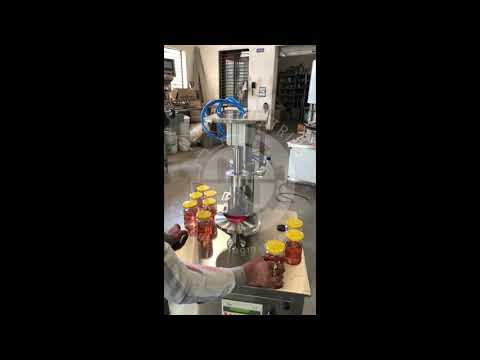

Semi Automatic Lug Capping Machine



Semi automatic LUG Capping machine Model NCS- 50L is apposite Manufacturing solution for startup industries where production demand is low & qualitative Lug Capping required. The machine can deliver 30 Bottle per minute output depending upon operator competence. Qualitative Screw Capping result due to use of motorized sealing head.  The machine is applicable in Vinegar , Pickle , Food manufacturing industries



Semi Automatic LUG Capping machine can work with wide shaped of container like Round, Square, and Triangular with minimum change part. Machine speed can be adjusted due to the Use of Sensor less vector control Variable frequency drive.

  • Compact & multipurpose unit.
  • Easy operating interface as operating panel mounted at front side of machine.
  • Motorized Punematic Lug capping head.
  • Minimum change parts require for different container diameter.
  • Low noise level & low power consumptions.
  • Adjustable bottle height gauge provided for easy & quick setting.
  • Sealing pressure can be varied to suit different gauges and size of caps
  • PLC Operated machine

Model

NCS -50L

Feeding technology

Bottle and Cap Feeding manual

Output/Hour*

20 Container per Min depends upon Human efficiency

No. of sealing head

1 Nos. (Motorized Pneumatic powered Jaw type Sealing head)

Electrical Motor**

1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine

Overall Dimension

1000 mm (L) x 720 mm (W) x 1400 (H) Approx.

Case Dimension

1200 mm (L) x 950 mm (W) x 1600 (H) Approx.

Net Weight

200 Kgs. Approx.

Gross Weight

350 Kgs. Approx.

Change parts required

Capping head  if cap diameter change.

Controlling

Through PLC

Operating

Though HMI

  • Food & Ancillaries
  • Pickle Manufacturing Plant
  • Vinegar Packaging Plant
