Automatic Tablet Counting And Filling Machine

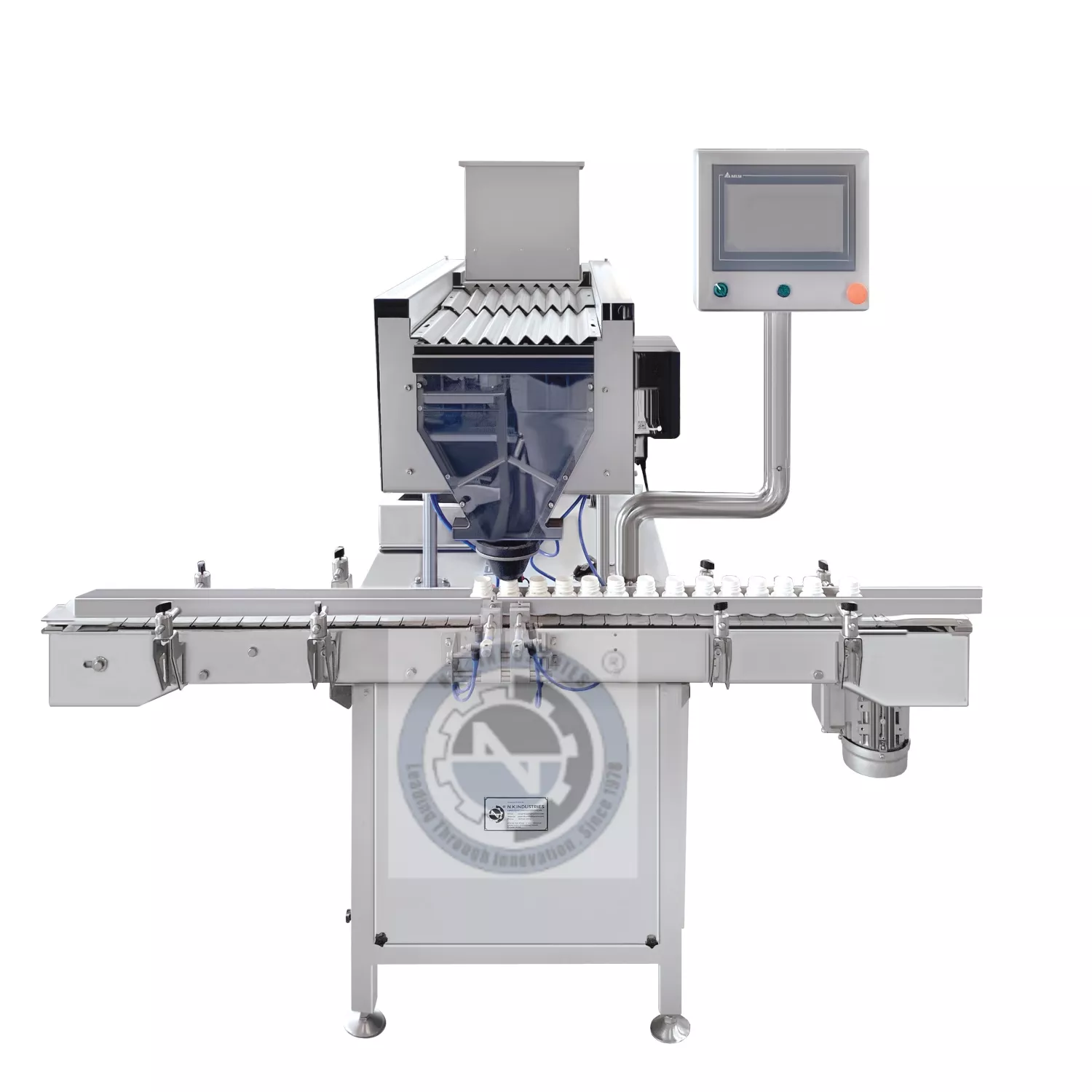

Automatic Tablet Counting and Filling Machine

N.K Industries is Avant-Garde manufacturer & supplier of series of Automatic Tablet counting and filling machine based in industrial city Ahmedabad in state of Gujarat in India. The automatic tablet counting and filling machine is capable to count and fill the variety of product like tablet, Pill, Capsules, Soft gel etc. The Series is capable to deliver to production output range from 30 to 100 Bottle per minute with precise counting.

The most versatile features of our offered machine is “NO Bottle – NO Count – No Fill” system , 100% Non-Proprietary Electronics , CE certified electronics” and “No Change part required for filling different size of product” .

Our Avant-Garde Automatic Tablet Counting And Filling Machine Is Available With Following Eminent Features:

  • Soberly Compact & Monoblock Model Where Two Process Of Counting And Filling Are Integrated.
  • Modular Design & CGMP Model.
  • Varieties Of Models Like 8-12-16-24-32 Channels Are Available In Order To Suit The Production Requirement Of Client Which Can Deliver The Output From 30 Bottle To 100 Bottle Per Minute.
  • Specialized AISI 304 In-house Fabricated Conveyor For Trouble Free Operation. As An Optional Delrin Made Conveyor Too Available.
  • All Gear Box And Motor Are Imported CE Certified.
  • Machine Frame Is Constructed Using Matt Finished AISI 304 Sheet.
  • Noise Level Less Than 70DB.
  • Counting Variation Is Less Than 1% Due To Advanced Design And Technology.
  • Machine Equipped With State Of The Art Programmable Logic Controller And Operating Is Imparted Through HMI (Human Machine Interface).
  • Simple Operation And No Change Part Required For Counting The Different Size Of Pill, Tablets As Well As Capsules.
  • Ultra-Fast Filling Speed With Single Head.
  • Equipped With “No Bottle – No Count – No Fill” Interlock.
  • Extraordinary Fabricated Product Feeder Hopper To Evade Product Jamming.
  • Protecting Device On Machine As Well As Prevent The Product From Any Harm During Counting And Filling.
  • Machine Is Versatile And Adaptive To The Smaller Mouth Diameter Of Bottle For Operation.
  • State Of Art Vibrator Product Feeding System.
  • Advanced Filling Technology.
  • Recognition And Sorting Function
  • Automatically Remove Bottles Of Filling Irregularities And Broken Tablets.
  • An Anti-dust System Is Equipped With Unique Anti-dust Sensor Which Impart The Accurate And Stability In High Dust Situation.
  • Capable To Count And Fill 2 To 9998 Product (Tablet, Pill, Capsule) Per Container.
  • 100% Non-Proprietary Electronics & All Electronics CE Certified.

This Advanced Electronic Pill Counter / Automatic Tablet Counting And Filling Can Be Equipped With Following Add On Feature

  • Audit Trail Facility
  • Toughened Glass Safety Cabinet For Machine.
  • Complete Validation Service.

Variety Of Automatic Tablet Counting And Filling Machine Model

Model

NKTCF– 40

NKTCF-60

NKTCF-80

NKTCF-100

Direction

Left To Right

Left To Right

Left To Right

Left To Right

Production Rate

Up To 30 To 40 Bottles / Minute (Depending Upon The Product Count)

Up To 40 To 60 Bottles / Minute (Depending Upon The Product Count)

Up To 60 To 80 Bottles / Minute (Depending Upon The Product Count)

Up To 80 To 100 Bottles / Minute (Depending Upon The Product Count)

Number Of Counting Channel / Track

8

12

16

24

Counting Range / Bottle

2 To 9999

2 To 9999

2 To 9999

2 To 9999

Tablet Sizes

Tablets Dia. 5 To 12mm, Irregular Shape,

Tablets Dia. 5 To 12mm, Irregular Shape,

Tablets Dia. 5 To 12mm, Irregular Shape,

Tablets Dia. 5 To 12mm, Irregular Shape,

Pill Sizes

Pills Dia. 3 To 13mm

Pills Dia. 3 To 13mm

Pills Dia. 3 To 13mm

Pills Dia. 3 To 13mm

Capsule Sizes

Capsules 0 To 5

Capsules 0 To 5

Capsules 0 To 5

Capsules 0 To 5

Container Size

·      Neck Diameter 25mm To 40mm

·      Body Diameter 39 To 62mm,

·      Bottle Height 39 To 241mm

Container Adaptability

·     Machine Can Work With Glass, HDPE, PET, Plastic, LDPE Container.

·     It Is Suitable For Both Round And Flat Shape Container.

Power Requirement

0.5 HP

230 Volts,50 Hz, 1 Phase (4 Wire System)

1 HP,

230 Volts,50 Hz, 1 Phase (4 Wire System)

1.5 HP

230 Volts,50 Hz, 1 Phase (4 Wire System)

2 H.P., 230 230 Volts,50 Hz, 1 Phase (4 Wire System)

Machine Dimension (L X W X H)

1200mm X 960mm X 1300mm

1450mm X 1370mm X 1510 Mm

1650mm X 1370mm X 1510 Mm

1830 Mm X 1500 Mm X 1800 Mm

Tablet Counter And Filler Is Applicable In Following Industries

  • Pharmaceuticals.
  • Nutraceuticals

Notes:

  • Refer Technical Specification Segment On This Page To Select The Model As Per The Production Speed Requirement.
  • Right Of Technical Enhancement & Modifications Reserved.
  • All Illustrations & Dimensions Are Described For Information Only.
