Automatic Rotary Ropp Cap Sealing Machine

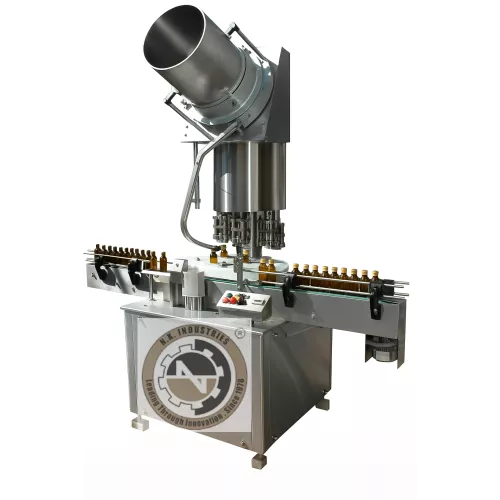

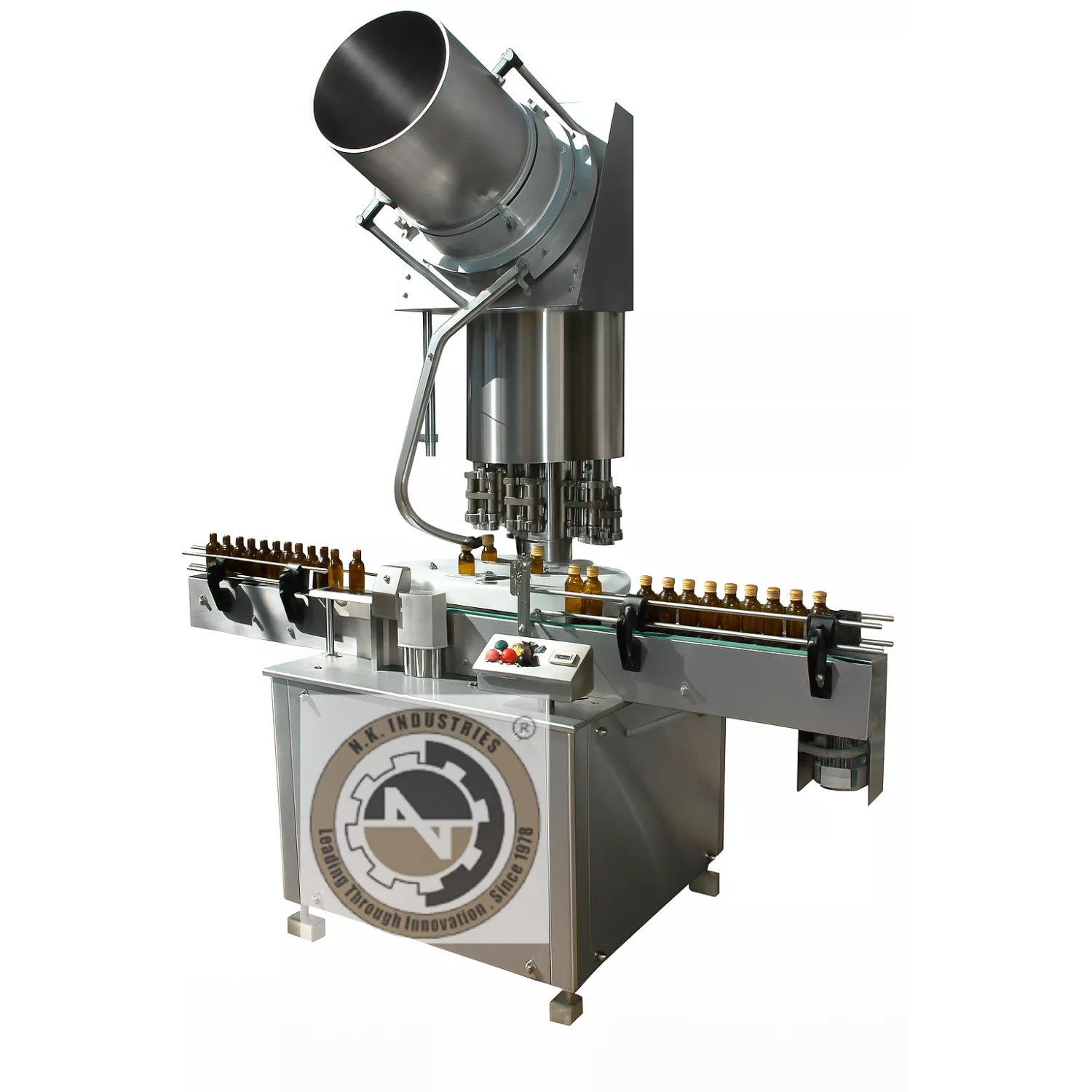

ROPP CAP SEALING MACHINE

N.K Industries based in Ahmedabad, India is leading manufacturer, exporter of range of Automatic ROPP Cap Sealing machine. These ROPP Cap Sealing machine are designed in Rotary configuration and available in 4 head, 6 head, 8 head and 12 head configurations with Output speed is from 100 containers per minute to 300 containers per minute.

Our State of the Art Automatic ROPP Cap Sealing Machine are being equipped with astounding safety features like safety clutches at star wheel system and feed worm, No Bottle – NO Cap system & emergency push bottom. As an add on feature, it is available with Toughened Glass Safety cabinet, online vacuum-based cap cleaning system. Machine can work with wide shaped of container like Round, Square with the aid change part.Machine is almost virtually Maintenance free with long lasting performance.

Automatic ROPP Cap Sealing Machine Is Equipped With Following Basic Features:
  • CGMP Model.
  • Parts Coming In Contact With Bottle / ROPP Cap Are Made Out Of AISI 304.
  • Single Motor Synchronizes Conveyor, Star Wheels And Platform Turret.
  • Safety Clutches At Worm (which Separate Bottle) And Star Wheel System
  • No Bottle – No Cap System.
  • Single Cam System Which Controls Head Height & Cap Pick-off Assembly
  • Cap Feeding Through Mechanical Orientator
  • Fast Change Over Time.
  • 6 Digit – Digital Counter
  • Online Vacuum Cleaning System To Remove The Dust Online From Cap
  • PLC - HMI Interface With Audit Trail Facility
  • Cap Feeder Elevator
  • Automatic Head Up And Down System
  • Toughened Glass Or Acrylic Safety Cabinet For Machine.

ROPP CAP SEALING MACHINE

Model

NKCS-150R

NKCS-250R

NKCS-350R

NKCS-450R

Direction

Left To Right

Left To Right

Left To Right

Left To Right

Production Rate

Up To 100 Bottle Per Minute For 50 Ml Bottle

Up To 120 Bottle Per Minute For 50 Ml Bottle

Up To 180 Bottle Per Minute For 50 Ml Bottle

Up To 300 Bottle Per Minute For 50 Ml Bottle

Electrical Supply

1 HP For Main Drive

0.25 HP For Oreintation Unit

1 HP For Main Drive
0.25 HP For Oreintation Unit

2 HP For Main Drive
0.50 HP For Orientation Unit

2 HP For Main Drive
0.50 HP For Oreintation Unit

Auto Cap Pick Up Ratio

≥99.7%

≥99.7%

≥99.7%

≥99.7%

Qualified Capping Ratio

≥99.5%

≥99.5%

≥99.5%

≥99.5%

Bottle Breakage Ratio

≤0.5%

≤0.5%

≤0.5%

≤0.5%

No Of Sealing Head

4 Head

6 Head

8 Head

12 HEAD

Bottle Diameter (mm)

22 MM To 65 MM MAX.

22 MM To 65 MM MAX.

22 MM To 65 MM MAX.

22 MM To 65 MM MAX.

Bottle Height (mm)

55 MM To 110 MM MAXIMUM.

55 MM To 110 MM MAXIMUM.

55 MM To 110 MM MAXIMUM.

55 MM To 110 MM MAXIMUM.

ROPP Cap

20 Mm To 40 Mm

20 Mm To 40 Mm

20 Mm To 40 Mm

20 Mm To 40 Mm

Power Requirement

440 V ,3 Phase (4 Wire System ) 50 HZ

440 V ,3 Phase (4 Wire System ) 50 HZ

440 V ,3 Phase (4 Wire System ) 50 HZ

440 V ,3 Phase (4 Wire System ) 50 HZ

Height Of Conveyor

Adjustable From 800 To 850 Mm

Adjustable From 800 To 850 Mm

Adjustable From 800 To 850 Mm

Adjustable From 800 To 850 Mm

Dimension
(L X W X H) Mm

1530 X 812 X 1900

1830 X 812 X 1900

2130 X 915 X 1900

3050 X 1050 X 1900

  • Pharmaceutical,
  • Beverages,
  • Wine
  • Distilleries
